Get and set NTP settings of all VMware Hosts with PowerCLI

Quiet often when I connect to customer sites to conduct a health check, I sometimes find their hosts having different NTP settings, or not having NTP configured at all. Probably one of the easiest one-liners I keep in my virtual Rolodex of powerCLI one-liners, is the ability to check NTP settings of all hosts in the environment.

Checking NTP with Powercli

Get-VMHost | Sort-Object Name | Select-Object Name, @{N=”Cluster”;E={$_ | Get-Cluster}}, @{N=”Datacenter”;E={$_ | Get-Datacenter}}, @{N=“NTPServiceRunning“;E={($_ | Get-VmHostService | Where-Object {$_.key-eq “ntpd“}).Running}}, @{N=“StartupPolicy“;E={($_ | Get-VmHostService | Where-Object {$_.key-eq “ntpd“}).Policy}}, @{N=“NTPServers“;E={$_ | Get-VMHostNtpServer}}, @{N="Date&Time";E={(get-view $_.ExtensionData.configManager.DateTimeSystem).QueryDateTime()}} | format-table -autosize

With this rather lengthy command, I can get everything that is important to me.

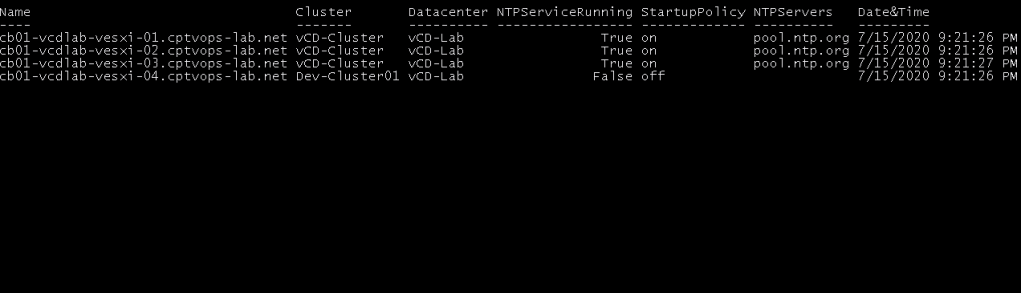

We can see from the output that I have a single host in my Dev-Cluster that does not have NTP configured. Quiet often I find customers that have mis-configured NTP settings, do not make use of host profiles that can catch and address issues like this.

If you also wanted to see the incoming, outgoing and protocols settings, you could use the following:

Get-VMHost | Sort-Object Name | Select-Object Name, @{N=”Cluster”;E={$_ | Get-Cluster}}, @{N=”Datacenter”;E={$_ | Get-Datacenter}}, @{N=“NTPServiceRunning“;E={($_ | Get-VmHostService | Where-Object {$_.key-eq “ntpd“}).Running}}, @{N="IncomingPorts";E={($_ | Get-VMHostFirewallException | Where-Object {$_.Name -eq "NTP client"}).IncomingPorts}}, @{N="OutgoingPorts";E={($_ | Get-VMHostFirewallException | Where-Object {$_.Name -eq "NTP client"}).OutgoingPorts}}, @{N="Protocols";E={($_ | Get-VMHostFirewallException | Where-Object {$_.Name -eq "NTP client"}).Protocols}}, @{N=“StartupPolicy“;E={($_ | Get-VmHostService | Where-Object {$_.key-eq “ntpd“}).Policy}}, @{N=“NTPServers“;E={$_ | Get-VMHostNtpServer}}, @{N="Date&Time";E={(get-view $_.ExtensionData.configManager.DateTimeSystem).QueryDateTime()}} | format-table -autosize

Set NTP with Powercli

You can setup NTP on hosts with powercli as well. I have everything in my lab pointed to ‘pool.ntp.org’, so my example will use that.

code snippet

Get-VMHost | Add-VMHostNtpServer -NtpServer pool.ntp.org

Most likely you would have multiple corporate NTP servers you’d need to point to, and that is easily done by separating them with a comma. An example of having two: Instead of having just ‘pool.ntp.org’ I’d have ‘ntp-server01,ntp-server02’.

The next thing needed is the startup policy. VMware has three different options to choose from. on = Start and stop with host, automatic = start and stop with port usage, and off = start and stop manually. In my lab I have the policy set to on.

code snippet

Get-VMHost | Get-VmHostService | Where-Object {$_.key -eq "ntpd"} | Set-VMHostService -policy "on"

With that in mind, the following command I can make the NTP settings of all hosts consistent. This command assumes that I only have one NTP server. I am also stopping and starting the NTP service. It is also worth mentioning that each host that already has the ntp server ‘pool.ntp.org’, will throw a red error that the NtpServer already exists.

Get-VMHost | Get-VmHostService | Where-Object {$_.key -eq "ntpd"} | Stop-VMHostService -Confirm:$false; Get-VMHost | Get-VmHostService | Where-Object {$_.key -eq "ntpd"} | Set-VMHostService -policy "on"; Get-VMHost | Add-VMHostNtpServer -NtpServer pool.ntp.org; Get-VMHost | Get-VMHostFirewallException | Where-Object {$_.Name -eq "NTP client"} | Set-VMHostFirewallException -Enabled:$true; Get-VMHost | Get-VmHostService | Where-Object {$_.key -eq "ntpd"} | Start-VMHostService

Now NTP should be consistent across all hosts. Re-run the first command to validate.

Getting certified during the pandemic 2020

Since I’ve been on this Professional Services path, as a sub contractor for VMware, I’ve normally been pretty busy. In fact, the majority of last year I spent on the road visiting customers, and so my Monday through Thursday was spent away from home. This made it incredibly difficult to find the motivation to continue my education. This year I’m making use of all the home time during the pandemic to level up. I really love working from home!

In May 2020 I was able to re-certify and pass the VMware Data Center Virtualization Exam for 2020. I spent weeks on prep, and it paid off as I scored 357 out of 300. This was also my first certification at home, rather than going to a testing center.

In July 2020, I decided to go after my first VMware Specialist class certification – Cloud Provider 2020. This certification centers around VMware Cloud Director, and its associated components VMware Cloud Availability and NSX. I’m no longer in the VMware Cloud Provider space, however that’s really where I cut my teeth on VMware technologies, and spent 2014 to 2018 designing, deploying, managing and upgrading five different vCloud Director based cloud environments. I’ve been told that this is a rare skill in VMware’s Professional Services, and have been able to work on a few vCD engagements for VMware as a result, so I felt it was important to have this. Oddly enough assignments I’ve had were not with Cloud Providers, but I’ve gotten to see some pretty unique ways the platform is used outside that space.

I am focusing on prepping for the vSphere VCAP design and deploy certifications. This Cloud Provider specialist cert was a nice distraction. I also have a class scheduled for NSX-T in the fall as I hope to get certified on VCP-NV 2020 as well. I might try and go for the vROps specialist exam this year too, but I really want to get at least one VCAP out of the way first.

More to come.
