The Home Lab Hardware

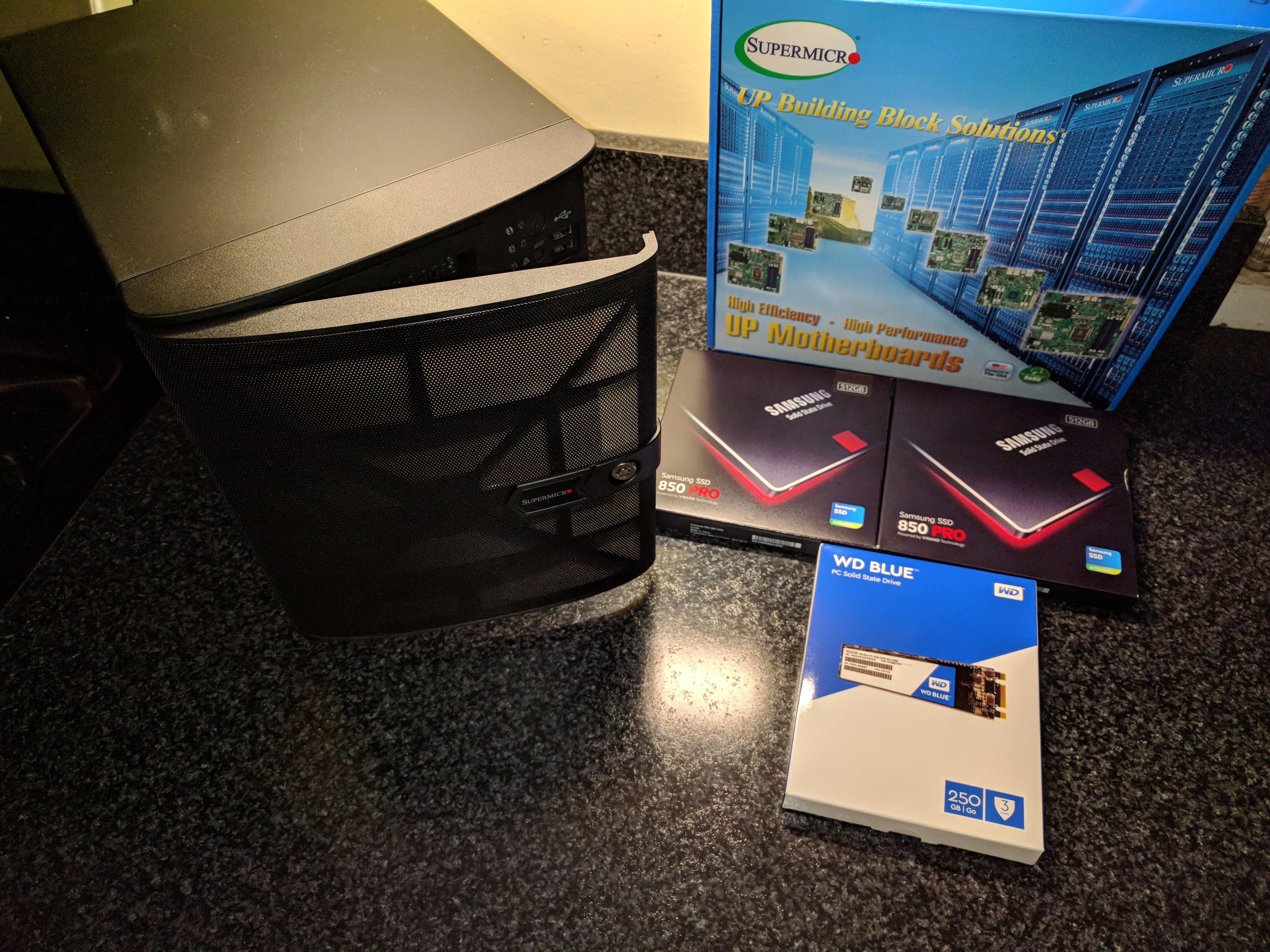

IMG_20171117_170133

Setup

I decided to go with a Supermicro build as I wanted something power efficient, yet expandable, and this motherboard supports up to 128GB of ECC RDIMM DDR4 2133MHz server grade memory.  Now with this setup, when I feel the need to expand out my lab, I can build two more nodes, and I’ll have a rather nice VSAN cluster.  However I’m hoping the cost of DDR4 memory will have come down by then…

I did look at the Supermicro SYS-E300-8D and SYS-E200-8D style micro servers, but like most, I was concerned about the fan noise, and thus decided to go with a slightly larger chassis to get the larger fan.  Honestly the fan in the unit I bought makes no more noise then a regular desktop computer.

Here’s my hardware:



Motherboard

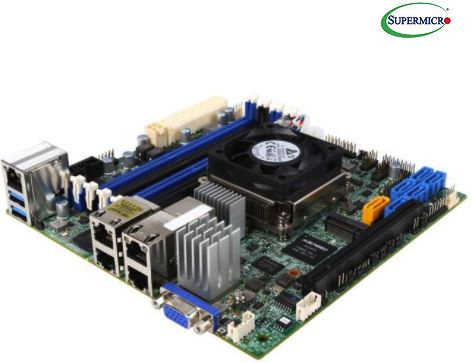

motherboardSUPERMICRO MBD-X10SDV-TLN4F-O Mini ITX Server Motherboard Xeon processor D-1541 FCBGA 1667

Newegg

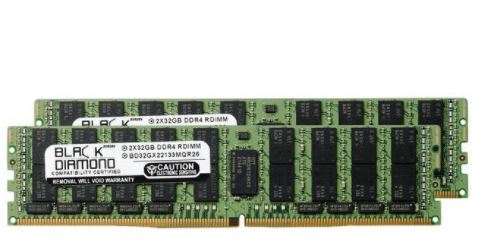

Memory

memory

Black Diamond Memory 64GB (2 x 32GB) 288-Pin DDR4 SDRAM ECC Registered DDR4 2133 (PC4 17000) Server Memory Model BD32GX22133MQR26

                                   Newegg

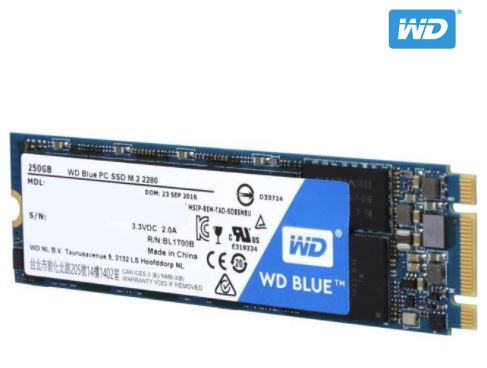

M.2 SSD

m.2ssd

WD Blue M.2 250GB Internal SSD Solid State Drive – SATA 6Gb/s – WDS250G1B0B

Newegg

SSD

ssd

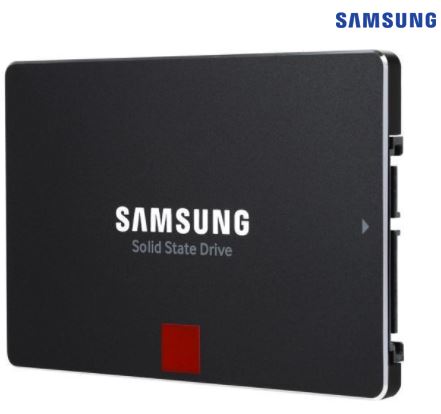

(x 2) SAMSUNG 850 PRO 2.5″ 512GB SATA III 3D NAND Internal Solid State Drive (SSD) MZ-7KE512BW

Newegg

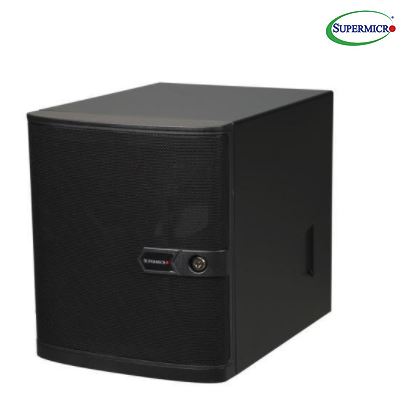

Case

chassis

SUPERMICRO CSE-721TQ-250B Black Mini-Tower Server Case 250W Flex ATX Multi-output Bronze Power Supply

Newegg

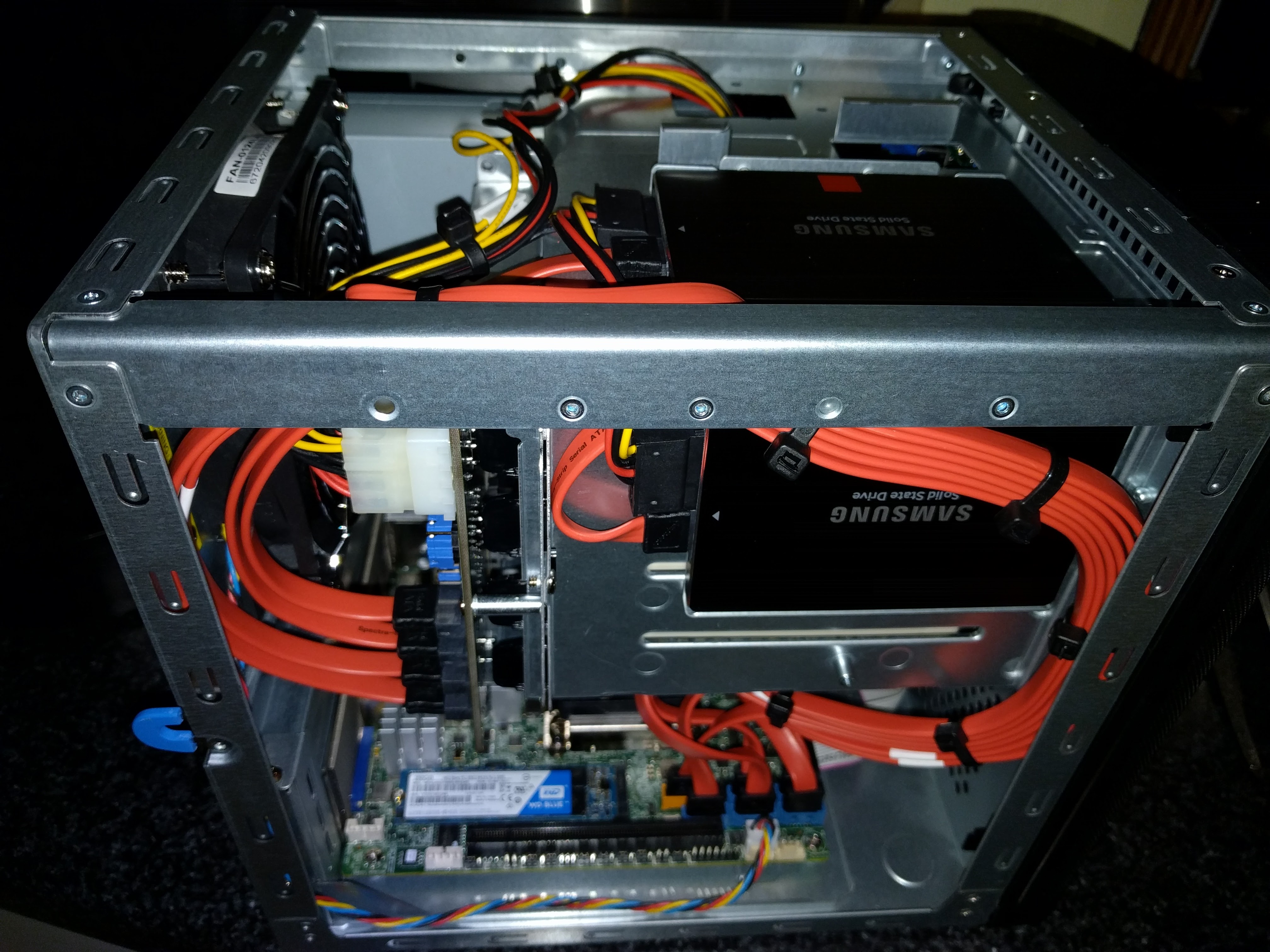

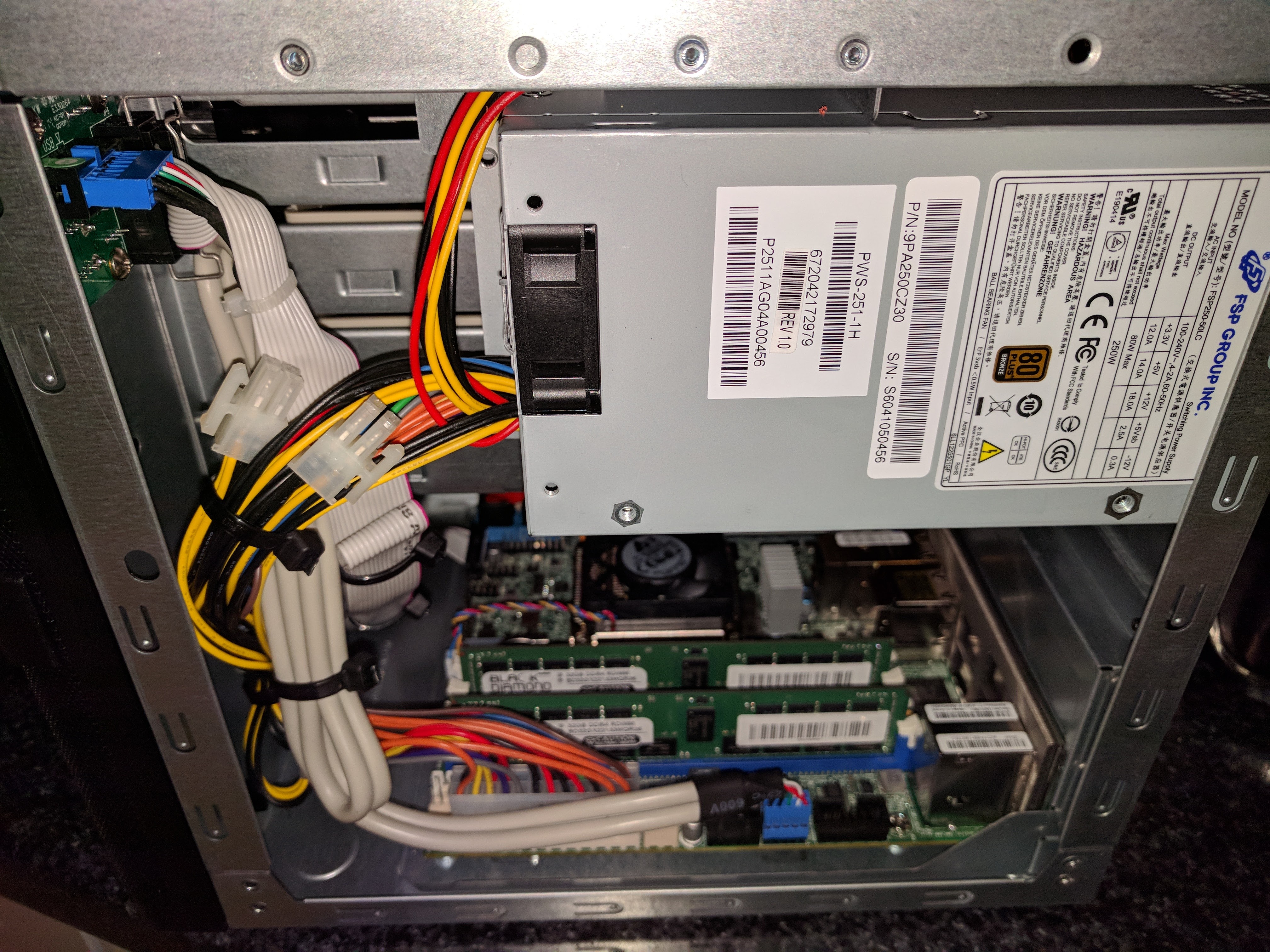

Who doesn’t love some internal shots after the lab-box has been put together?  🙂





In the coming blog posts, I’ll be building out my lab.  Stay tuned….

Go west young man! Looking ahead towards an exciting 2018, as I search for my next career opportunity.

VMW-LOGO-vEXPERT-2018-k

2018 VMware vExpert Award Announcement | My Community vExpert Profile

First of all, I would like to say that I am honored to be among some of the brightest VMware community technologists for a second year. Secondly I would like to personally welcome the new additions to the vExpert family.

vexpert-2-year

I’ve honestly debated using this platform to blog about things currently underway in my personal life, but the first step in solving any problem, is recognizing that there is one.  If I am being completely honest, 2018 started pretty rough for me. Shortly after returning to work after being out for surgery, I was informed that the company that I had been working for, for the past three plus years was shifting its priorities, and downsizing due to our parent company’s merger. Unfortunately my position with the company was affected. The past three years, and eight months had been some of the most exciting in my career, both from a technology standpoint, and a people standpoint as well. In those three plus years, I quickly had to ramp up on VMware technologies and concepts that I had never used before in a large cloud service provider environment.

My time spent with this company has afforded me with hands on expertise in managing multiple virtual environments that exceeded 500 ESXi hypervisors, several vCenter server appliances, NSX appliances, vROPS clusters, and several vCloud Director environments, in data centers all over the world.  I battled the on-call boogeyman in intense hand-to-hand combat, restored three production data centers affecting over a thousand vCloud Director and Zerto tenants, and got to work on several fun POCs including working with VMware engineering on deploying VMware’s vCloud Availability. It was an amazing ride, with some of the best teammates I ever had the pleasure to work with.  In those three plus years, I found time to obtain my VCP6-DCV certification, start my own tech blog, and become an active member in the VMware community sharing my experiences, and learning from others. But when one door closes, another will eventually open to greater opportunities.

IMG_20160703_110706

Recently I have been thinking a great deal about moving west for my next adventure in cloud computing, and I would be lying if I said Colorado wasn’t on my mind. My goal now is to continue contributing my passion for VMware technologies to the VMware community, to help others, and learn from others, while I search for my next career to elevate my skills even higher, and to help business adopt virtualization and cloud technologies.

As such, I am making plans to attend the Denver VMUG usercon in April.  Hope to see you there.

denverusercon



vmw-logo-vexpert-2017-k

vExpert-Cloud-2017-badge-300x198

VMW-LGO-CERT-PRO-6-DATA-CTR-VIRT

Onboarding to VMware Cloud on AWS

Onboarding to VMware Cloud on AWS

Onboarding to VMware Cloud on AWS

Joining the VMware Cloud on AWS service is not like deploying vCenter or other VMware products. Because VMware Cloud on AWS is a managed service operated by VMware, you need on onboard to the service and create what we call an Organization which is the key tenant construct within VMware Cloud on AWS. In the The post Onboarding to VMware Cloud on AWS appeared first on VMware Cloud Community .


VMware Social Media Advocacy

VMware Cloud on AWS expands to AWS EU (London)…

VMware Cloud on AWS expands to AWS EU (London) Region with continuing momentum on delivery of new capabilities

VMware Cloud on AWS expands to AWS EU (London)…

We are excited to announce VMware CloudTM on AWS is now available in the AWS London Region. The post VMware Cloud on AWS expands to AWS EU (London) Region with continuing momentum on delivery of new capabilities appeared first on VMware Cloud Community .


VMware Social Media Advocacy

Partner Programs for VMware Cloud™ on AWS

Partner Programs for VMware Cloud™ on AWS

Partner Programs for VMware Cloud™ on AWS

By: Brandon Sweeney, Senior Vice President, Worldwide Commercial and Channel Sales, VMware Ever since we announced the strategic partnership between VMware and AWS, the level of interest by customers and partners has been amazing. Personally, in my 14 years at VMware, I have never seen this level of alignment, engagement and excitement with a partner, The post Partner Programs for VMware Cloud™ on AWS appeared first on Power of Partnership .


VMware Social Media Advocacy

Failure Installing NSX VIB Module On ESXi Host: VIB Module For Agent Is Not Installed On Host

Now admittedly I did this to myself as I was tracking down a root cause on how operations engineers were putting hosts back into production clusters without a properly functioning vxlan.  Apparently the easiest way to get a host into this state is to repeatedly move a host in and out of a production cluster to an isolation cluster where the NSX VIB module is uninstalled.  This is a bug that is resolved in vCenter 6 u3, so at least there’s that little nugget of good news.

Current production setup:

  • NSX: 6.2.8
  • ESXi:  6.0.0 build-4600944 (Update 2)
  • VCSA: 6 Update 2
  • VCD: 8.20

So for this particular error, I was seeing the following in vCenter events: “VIB Module For Agent Is Not Installed On Host“.  After searching the KB articles I came across this one KB2053782 “Agent VIB module not installed” when installing EAM/VXLAN Agent using VUM”.  Following the KB, I made sure my update manager was in working order, and even tried following steps in the KB, but I still had the same issue.

  • Investigating the EAM.log, and found the following:
 1-12T17:48:27.785Z | ERROR | host-7361-0 | VibJob.java | 761 | Unhandled response code: 99
 2018-01-12T17:48:27.785Z | ERROR | host-7361-0 | VibJob.java | 767 | PatchManager operation failed with error code: 99
 With VibUrl: https://172.20.4.1/bin/vdn/vibs-6.2.8/6.0-5747501/vxlan.zip
 2018-01-12T17:48:27.785Z | INFO | host-7361-0 | IssueHandler.java | 121 | Updating issues:

 eam.issue.VibNotInstalled {
 time = 2018-01-12 17:48:27,785,
 description = 'XXX uninitialized',
 key = 175,
 agency = 'Agency:7c3aa096-ded7-4694-9979-053b21297a0f:669df433-b993-4766-8102-b1d993192273',
 solutionId = 'com.vmware.vShieldManager',
 agencyName = '_VCNS_159_anqa-1-zone001_VMware Network Fabri',
 solutionName = 'com.vmware.vShieldManager',
 agent = 'Agent:f509aa08-22ee-4b60-b3b7-f01c80f555df:669df433-b993-4766-8102-b1d993192273',
 agentName = 'VMware Network Fabric (89)',
  • Investigating the esxupdate.log file and found the following:
 bba9c75116d1:669df433-b993-4766-8102-b1d993192273')), com.vmware.eam.EamException: VibInstallationFailed
 2018-01-12T17:48:25.416Z | ERROR | agent-3 | AuditedJob.java | 75 | JOB FAILED: [#212229717]
 EnableDisableAgentJob(AgentImpl(ID:'Agent:c446cd84-f54c-4103-a9e6-fde86056a876:669df433-b993-4766-8102-b1d993192273')),
 com.vmware.eam.EamException: VibInstallationFailed
 2018-01-12T17:48:27.821Z | ERROR | agent-2 | AuditedJob.java | 75 | JOB FAILED: [#1294923784]
 EnableDisableAgentJob(AgentImpl(ID:'Agent:f509aa08-22ee-4b60-
  • Restarting the VUM services didn’t work, as the VIB installation would still fail.
  • Restarting the host didn’t work.
  • On the ESXi host I ran the following command to determine if any VIBS were installed, but it didn’t show any information:  esxcli software vib list

Starting to suspect that the ESXi host may have corrupted files.  Digging around a little more, I found the following KB2122392 Troubleshooting vSphere ESX Agent Manager (EAM) with NSX“, and KB2075500 Installing VIB fails with the error: Unknown command or namespace software vib install

Decided to manually install the NSX VIB package on the host following KB2122392 above.  Did the manuel extract the downloaded “vxlan.zip”. Below are contents of the vxlan.zip. It Contains the 3 VIB files:
  • esx-vxlan
  • esx-vsip
  • esx-dvfilter-switch-security

Tried install them manually, but got errors indicating corrupted files on the esxi host.  Had to run the following commands first to restore the corrupted files.  **CAUTION – NEEDED TO REBOOT HOST AFTER THESE TWO COMMANDS**:

  • # mv /bootbank/imgdb.tgz /bootbank/imgdb.gz.bkp
  • # cp /altbootbank/imgdb.tgz /bootbank/imgdb.tgz
  • # reboot

Once the host came back up, I attempted to continue with the manual VIB installation.  All three NSX VIBS successfully installed.  Host now showing a healthy status in NSX preparation.  Guest introspection (GI) successfully installed.
