Collect Windows/Linux Virtual Server System Logs Using vRealize Log Insight

Blog Date: 06/16/2021
vRealize Log Insight 8.3

I recently had a customer engagement with Log Insight, and not only did they want to use it as the main log collector for their infrastructure, but they also wanted it to collect logs from their Windows virtual servers. Good news! There is a content pack called “Microsoft – Windows” that should be installed.  This contains a configuration template for windows servers.  This is used to create a group, so that every time a windows box has the agent installed, the agent picks up the settings from the server and forwards its logs.  Otherwise, we must configure each agent ini file manually which is not ideal.    There is also a Linux content pack on the market place that can be setup as well. This blog will focus on the Windows content pack, but the steps for Linux is very similar.

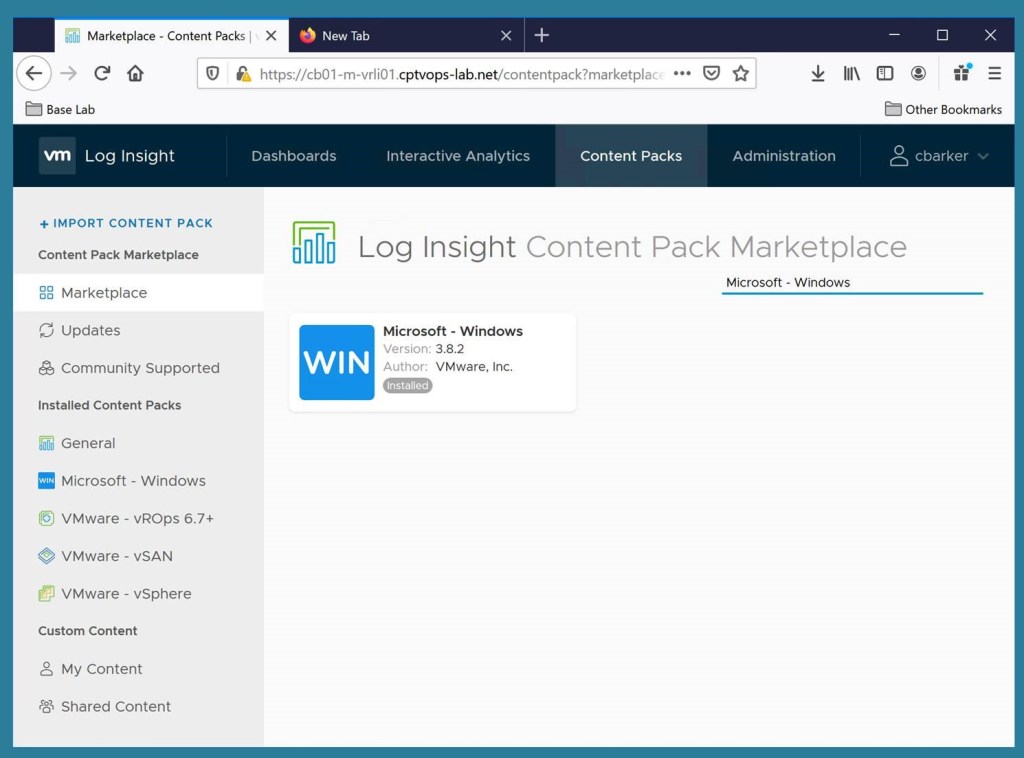

The ” Microsoft – Windows” content pack can be found in the Marketplace in Log Insight located on the Content Packs tab.

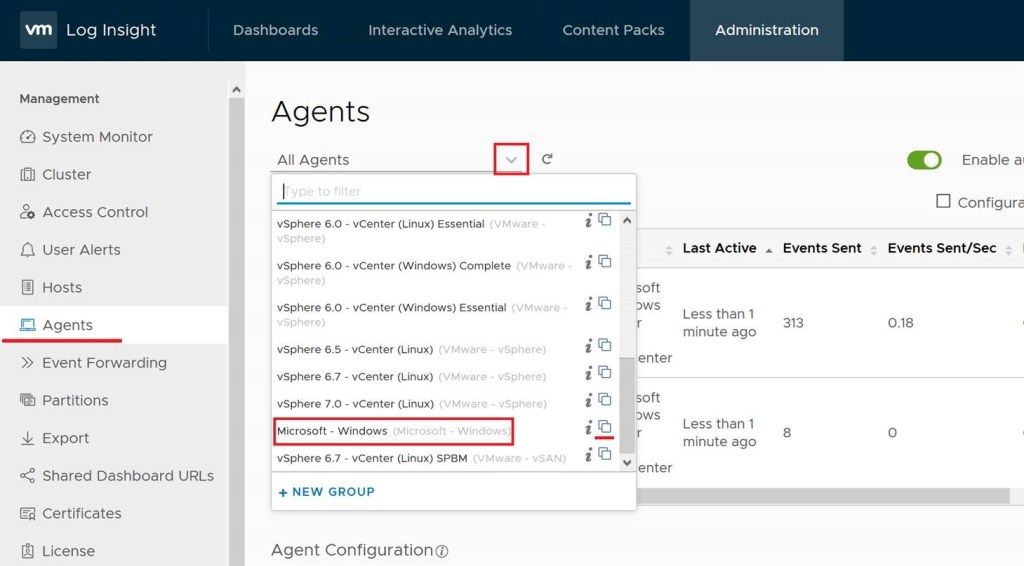

Once this is installed, go back to the Administration tab, and click on agents in the left column.  Click the down carrot next to All Agents, and find “Microsoft – Windows” in the list.  To the right of it, click the double box icon to copy the template.

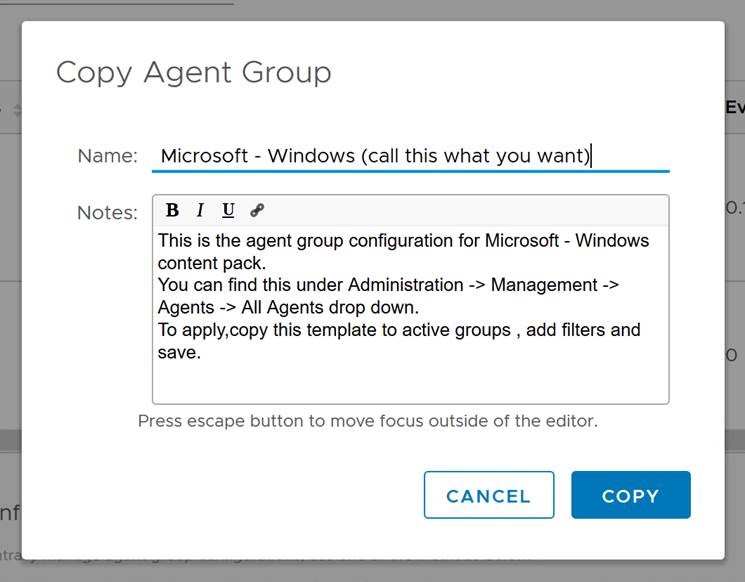

Name the group, and click copy.

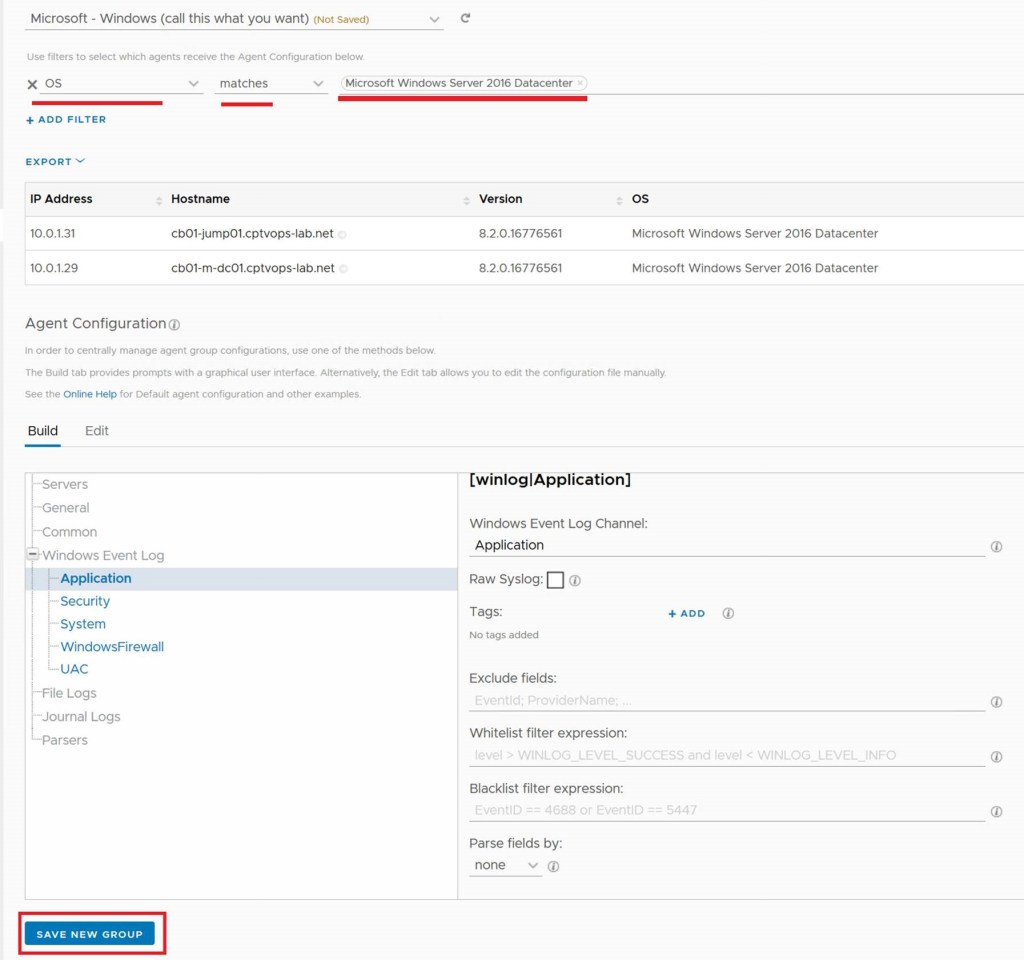

Now you configure the filter to find the windows server.  In my example, I chose “OS” “Matches” “Microsoft Windows Server 2016 Datacenter”. Click Save New Group button below.

Now that we have a Windows group defined for the agents, go ahead and install the agent on the Windows Server, and now it will have a proper configuration and begin forwarding its logs.  If the box already has the agent installed, you might need to restart the agent, or reinstall it.

Likewise, there is also a Linux content pack on the market place that can be setup as well.  For either, we don’t have to create one group to rule them all.  You can get creative with your group filters, and have specific groups for specific server functions.
